This time let me introduce a new product which is produced by SHANGHAI SIBO M&E CO.,LTD - XL50S Series Draw-wire Position Sensor! This draw-wire position sensor is an economical product developed for short distance travel. It has the characteristics of low cost, small volume and diversified signal output, and can also replace the long stroke linear displacement sensor!

The characteristics of XL50S Series Draw-wire Position Sensor.

◆ Low cost

Compared with the uneven quality and inflated price of the draw-wire position sensor on the market, the XL50S adheres to the route of ‘high quality, low price’. If you need to reduce the cost, the XL50S will be your first choice.

◆ Small volume

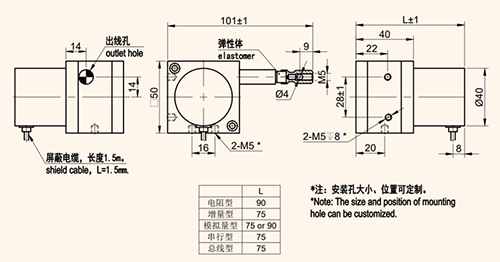

The size of XL50S series draw-wire position sensor is only 50x50mm. It mainly measures the effective travel within 1.5m. The effective travel is the longest among wire products of the same volume.The small size of the product can save installation space for customers.The product adopts aluminum alloy shell, which is light and solid. The electrical part can reach the protection level of IP54. According to the different potentiometers and encoders selected, the resolution of the XL50S series draw-wire position sensor can range from 0.25mm to 0.025mm.

◆ Diversified signal output

Potentiometers or encoders can be mounted inside to realize diversified output signals, such as resistive output; Incremental output; Analog quantity 0505, 2410, 2442 output; Serial SSI output; Bus RS485, CAN output.

◆ Multiple installation methods

Compared with linear displacement potentiometer, XL50S has longer effective measuring stroke and more diversified measuring methods, which can meet different installation requirements of customers.

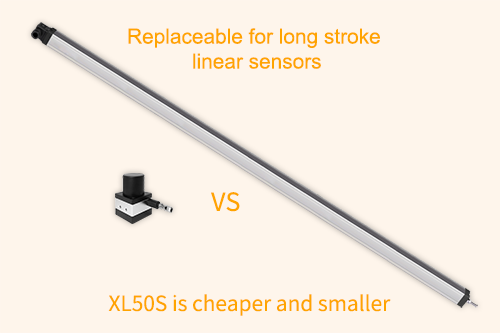

◆ Replaceable for long stroke linear sensors

Compared with the high production cost and volume of the long stroke linear displacement potentiometer, the XL50S is compact, low-price and high-resolution, and can also achieve diversified signal output. It is the preferred solution for the customer to reduce cost and upgrade equipment! Welcome to consult and purchase!

The application of XL50S Series Draw-wire Position Sensor

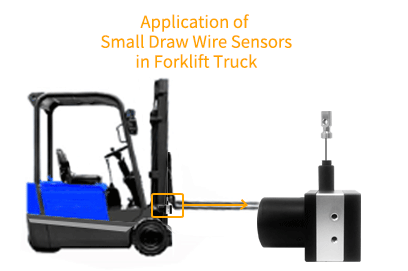

XL50S Series Draw-wire Position Sensor can be used in forklift, aerial work truck, logistics equipment, injection molding machine, lifting platform, etc.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.

More information

Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise, Class A Taxpayer Enterprise, and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!

For more product information, please visit Sibo's website at www.fgkc.com.cn/en/
